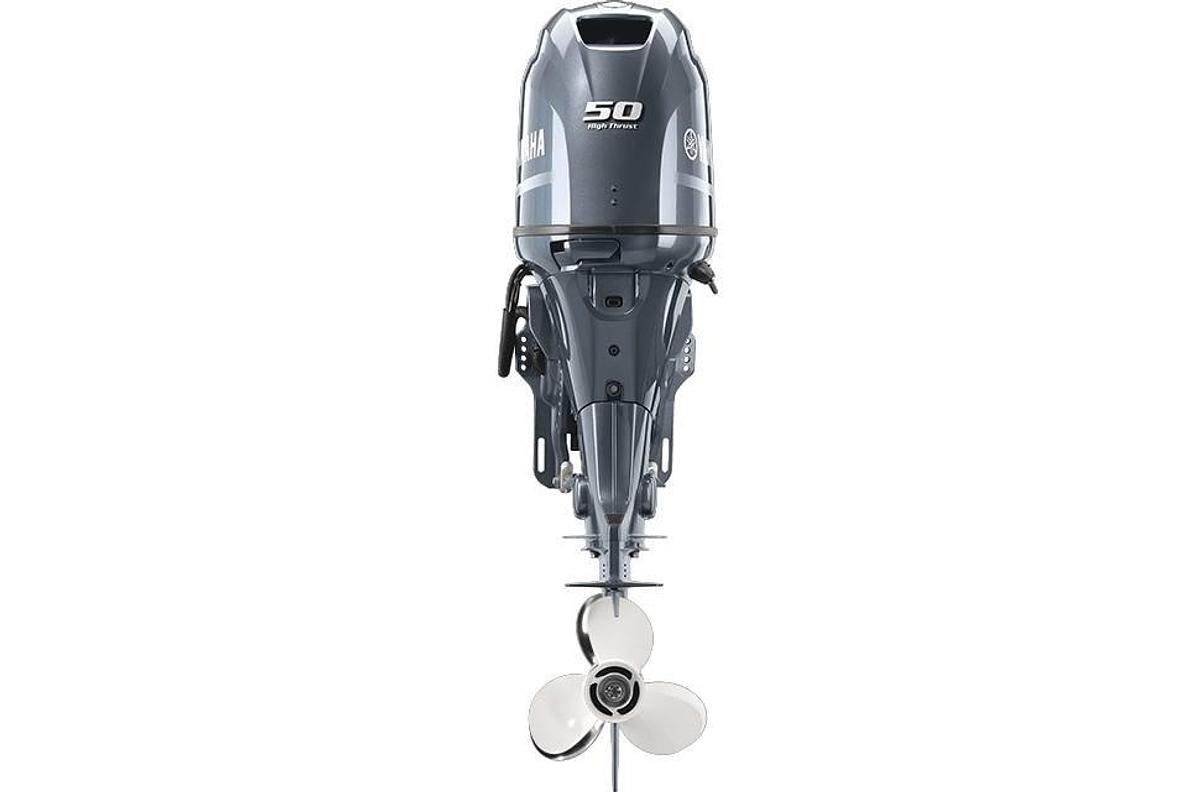

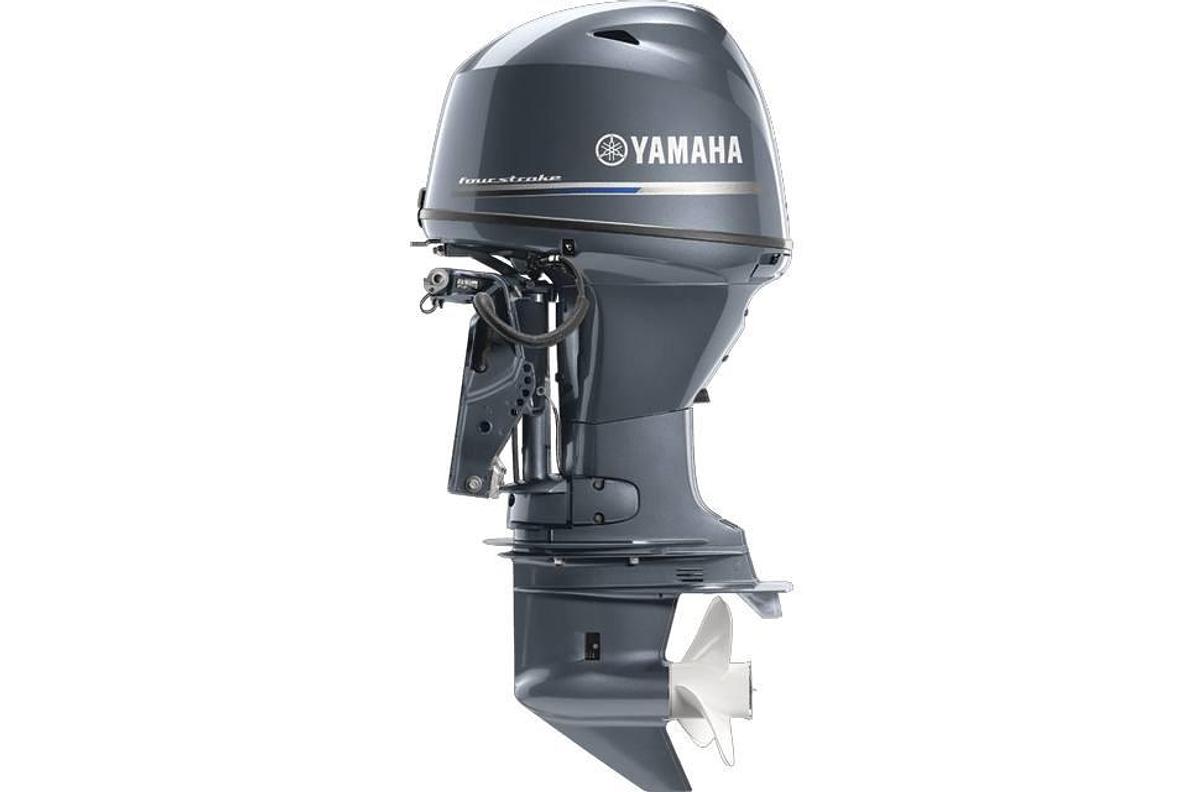

2022 Yamaha T50LB

Yamaha 50HP Outboard, High Thrust, Remote Control, Long(20") Shaft, Mfg. 08/22. Model T50LB.
This is a New Yamaha 50 HP High Thrust Outboard Motor. It is long shaft for 20" transoms. Remote Controlled with Electric Start and Power Trim. Manufactured Date is 08/2022. Yamaha Outboards exceeding 25 HP do not include a prop. This engine comes with a fuel line including connectors and primer bulb. It also includes battery cables, mounting bolts, steering link arm, and an owners manual. The factory warranty is 3 years.
MSRP $8395.00
An authorized dealership can set up a warranty on new motor. The (pre-delivery) inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha Marine certified technician; it is not and cannot be done prior to shipping. "PDI" can only be done once the motor is installed on the boat.
MORE THRUST
The Higher Gear Ratio on Yamaha’s High Thrust outboards make these powerhouses ideal for heavy pontoons and other applications that require an extra measure of muscle.
Engine Type Inline 4
Displacement 1.0L
Bore x Stroke 65 x 75mm (2.56 x 2.95 in.)
Prop Shaft Horsepower 50hp @ 5500rpm
Full Throttle RPM Range 5000 ~ 6000 rpm
Alternator Output at W.O.T. 16 Amp
Compression Ratio 9.5:1
Fuel Induction System EFI
Weight † 117kg (262 lbs) Shipping Wt. 320 lbs
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 3-Star
Exhaust Through Propeller
Intake 8
Ignition TCI Microcomputer
Spark Plug DPR6EB-9
Starting System Electric
Lubrication Wet Sump
Engine Oil Capacity 2.1L/1.9L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.33:1
Gear Shift Forward, Neutral, Reverse
Shaft Length 20"
Degree of Tilt 69°
Degree of Trim -4° through +16°
Mounting Centers N/A
Steering
Steering Angle (maximum) 40° from center, either direction
Warranty Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
PLEASE READ
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges.

Our 996-cc 50-hp High Thrust four stroke has the extra measure of muscle you need for pushing heavy loads, such a pontoon or house boat. Its SOHC four-cylinder design, composite long-track intake system and proprietary YDC-30 aluminum alloy result in a 50-horsepower four stroke that’s light, compact and generates incredible thrust.

Power & Performance

More Thrust: The Higher Gear Ratio on Yamaha’s High Thrust outboards make these powerhouses ideal for heavy pontoons and other applications that require an extra measure of muscle.

Max Muscle: Increase thrust up to 60 percent in forward and 70 percent in reverse with a large-diameter, low-pitch Dual Thrust™ propeller. They're optional on our High Thrust T50 and T60, and standard on our T25 and T9.9, and are perfect for sailboats and pontoons. They can also be used on Yamaha Midrange outboards with 4.25" K gearcases.

Optimum Performance: Microcomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions.

Single Overhead Camshaft: A Single Overhead Camshaft (SOHC) design creates a compact, lightweight, space-saving design.

Fuel Economy: Precision Multi-Point Electronic Fuel Injection on the T60 and T50 delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization, further enhancing fuel economy.

Reliability & Durability

Solid and Dependable: Incoming air is routed through an Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.

Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha High Thrust four-stroke engines.

Wet Sump: The T50, T60, T25 and T9.9 all feature a pressurized oil delivery system that incorporates a compact and durable oil pump to keep all of the moving parts of their SOHC systems lubricated and running smoothly for maximum reliability.

Consistent Performance: Thermostatic Cooling Control helps provide proper engine temperature at all times for consistent performance and long, trouble-free engine life.

Convenience & Control

Gauge Compatibility: Optional Command Link® gauges provide real-time outboard performance, boat systems and environmental data at your fingertips. Streamlines displays available in square or round style for single- or multi-engine applications.

Ergonomic Control: Yamaha’s award-winning, Multi-Function Tiller Handle (optional on T60/T50) features an ergonomic design for easy shifting , better grip and less rotation from idle to wide-open throttle. This reduces operator fatigue for a full day of enjoyable boating. Truly multi-function, it control features include throttle, throttle friction control, shift lever, key switch, stop switch and a Power Trim & Tilt switch.

Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.

Model Specific Features

Compatible with mechanical controls, analog gauges and our Multi-Function Tiller Handle

262 pounds

Available in 20” shaft length

Solid 16-amp alternator

Power Trim & Tilt

Specifications

Engine Type: Inline 4

Displacement: 1.0L

Bore x Stroke: 65 x 75mm (2.56 x 2.95 in.)

Prop Shaft Horsepower: 50hp @ 5500rpm

Full Throttle RPM Range: 5000 ~ 6000 rpm

Alternator Output at W.O.T.: 16 Amp

Compression Ratio: 9.5:1

Fuel Induction System: EFI

Weight †: 117kg (262 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 3-Star

Exhaust: Through Propeller

Intake: 8

Ignition: TCI Microcomputer

Spark Plug: DPR6EB-9

Alternator Output: 16 Amp

Starting System: Electric

Lubrication: Wet Sump

Engine Oil Capacity: 2.1L/1.9L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.33:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 20"

Degree of Tilt: 69°

Degree of Trim: -4° through +16°

Dry Weight: 117kg (262 lbs)

Steering Angle (maximum): 40° from center, either direction

Warranty: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
