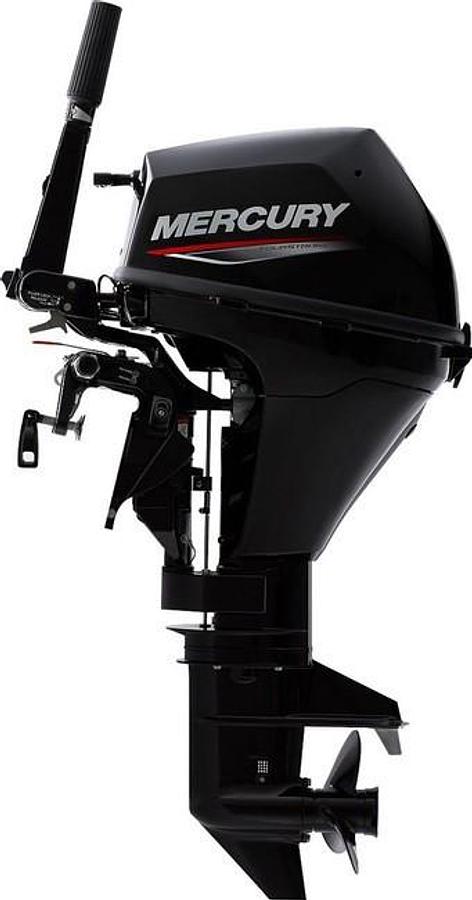

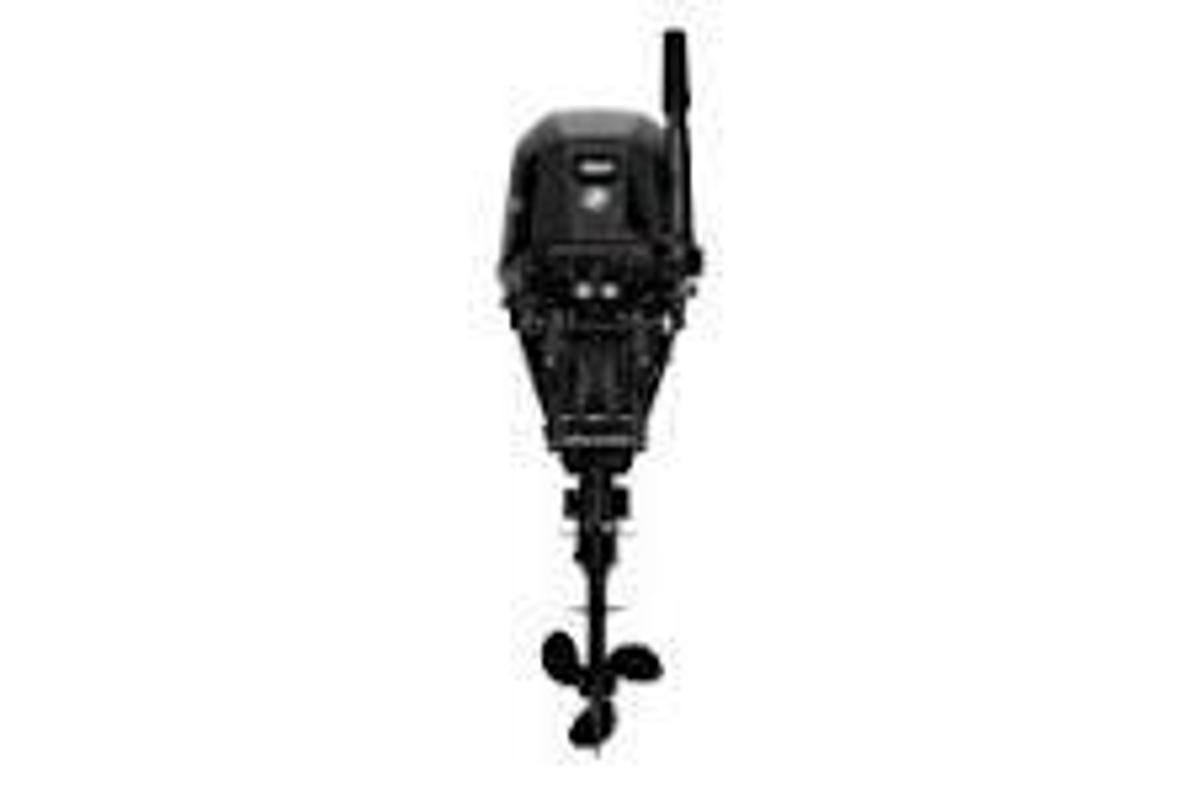

2022 Mercury 9.9MH 4S

New Mercury 9.9MH 4s. Manufacture Date 10/22.
M = Manual Start
H = Tiller Handle
15" Short Shaft.
Exclusive Ratcheting Manual Tilt Clamp Bracket
The Mercury exclusive ratcheting manual tilt clamp bracket features 6 trim and tilt positions and a full tilt lock. Simply push down on the tiller handle or pull back on the top cowl to raise and lower the outboard. This system ratchets and hold position automatically. Tilt all the way up to reset the angle back to the down position. Full down position can be selected with one of three memory locks.
9.9hp models are available with power tilt, which will automatically tilt the outboard up and down with the push of a button.
Safety, Reliability, & Convenience
Ratcheting Manual Tilt
Exclusive Multi-Function Tiller Handle
The multi-function tiller handle allows anglers to shift gears and control throttle with one hand by simply twisting the grip. The tiller handle also features a convenient stop button at the end of the grip and a safety lanyard stop switch with cord attachment. The throttle friction adjustment allows anglers to better fine-tune and hold trolling speeds. Use the tiller handle to trim or tilt the outboard quickly and easily, made possible with the ratcheting clamp bracket.
Easier & Safer Handling
Superior Corrosion Resistance
True corrosion protection starts with the alloys. All of Mercury's class-leading aluminum-silicon alloys deliver the best corrosion protection available in an outboard aluminum alloy today. Mercury's extensive cleaning, priming and painting process ensures long-term protection of aluminum castings and is a vital part of the 8/9.9EFI Four Strokes' overall corrosion resistance strategy.
Durable & Easy to Maintain

Key Features

Output far beyond its size: Put amazing power in the palm of your hand. These compact outboard motors take you to the fun, the fish, or whatever floats your boat – quickly and reliably. Enjoy quick acceleration to go with exhilarating speed. Easy to install and operate, with reliable starting, low vibration, and instant throttle response. It's worry-free boating at its best.

Fourstroke Technology And Mercury: Always moving forward. With boater-driven innovations and technologies. Like the world's first multi-function tiller handle. And a total commitment to corrosion protection, utilizing hard-coat anodizing and a superior multi-step paint process. Mercury FourStroke engines have consistently set the bar for clean, quiet performance and low fuel consumption. Plus, no one has more models to fit your needs.

Specifications

HP: 9.9 HP (7.3 kW)

Engine type: Inline 2

Displacement: 12.8 CID (208 cc)

Full throttle RPM: 5000-6000

Fuel induction system: 2 valves per cylinder, single overhead cam (SOHC)

Alternator: 6 amp (76 W)

Recommended fuel: 87 octane (up to 10% ethanol)

Recommended oil: Mercury FourStroke Oil 10W-30

Engine protection operator warning system: Low oil pressure; Over-rev

Starting: Electric; Manual

Steering: Remote; Tiller

Shaft length: 20" (508 mm)

Gearcase ratio: 2.08:1

Dry weight, Lightest model available: 84 lbs (38 kg)

CARB star rating: 3

Bore and stroke: 2.16 x 1.73" (55 x 44 mm)

Ignition: CDI w/electronic spark advance

Fuel system: Carbureted

Cooling system: Water-cooled with thermostat

Gear shift: F-N-R

Gearcase options: Standard

Trim positions: Ratcheting

Exhaust system: Through prop

Shallow water drive: Yes

Shallow water trim range: 16 deg.

Remote fuel tank: 3.2 gal. (12 L)

Color: Phantom Black
