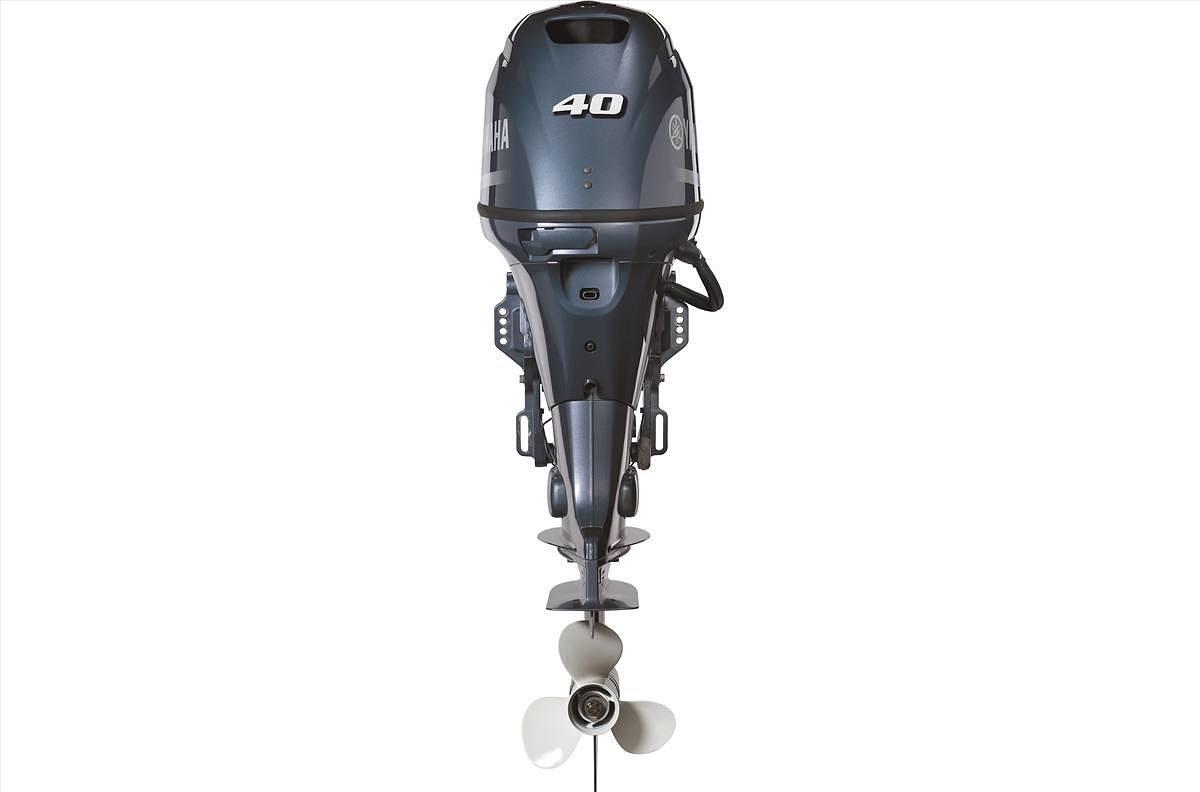

2022 Yamaha F40LEHA 4S

NEW 4 STROKE Yamaha 40 horsepower electric start outboard. Manufactured 08/22. This Motor is for boats with a 20" transom. It features nitro-assist tilt which makes tilting the engine almost effortless. Variable Trolling RPM Switch (VTS) allows for fine speed adjustment at your fingertips when trolling. This motor comes with a 3 YEAR WARRANTY. MSRP: $7415.00
This engine comes with a fuel line with primer bulb, and owners manual. Yamaha Outboards exceeding 25 HP do not include a propeller.
An authorized dealership can set up a warranty on a new motor. The "pre-delivery" inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha Marine certified technician; it is not and cannot be done prior to shipping. "PDI" can only be done once the motor is installed on the boat.
SPECIFICATIONS
Engine Type 3 cyl
Displacement 747cc
Bore x Stroke 65 x 75mm (2.56 x 2.95 in.)
Prop Shaft Horsepower 40hp at 5500rpm
Full Throttle RPM Range 5000 ~ 6000 rpm
Alternator Output at W.O.T. 17 Amp
Compression Ratio 9.4:1
Fuel Induction System EFI
Weight † 97 kg (214 lbs) - 101kg (223 lbs) Shipping weight 303 lbs
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 2-Star
Exhaust Through Propeller
Intake 6
Ignition CDI Microcomputer
Spark Plug DPR6EB-9
Alternator Output 17 Amp
Starting System Electric
Lubrication Wet Sump
Engine Oil Capacity 1.7L/1.5L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.00:1
Gear Shift Forward, Neutral, Reverse
Shaft Length 20"
Degree of Tilt 20° Manual Nitro Assist
Degree of Trim -3° through +20°
Dry Weight 97 kg (214 lbs) - 101kg (223 lbs) Shipping Weight 303 lbs
Mounting Centers N/A
Steering Angle (maximum) 40° from center, either direction
Warranty Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
PLEASE READ
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges.

Our 747-cc 40-hp midrange provides powerful performance in a compact package that’s available in both propeller- and jet-pump-driven models. With its single throttle valve, long-track intake manifold and electronic control module, it delivers easy starts, fast acceleration and excellent top-end speed.

Power & Performance

Fuel Economy: Precision Multi-Point Electronic Fuel Injection delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization further enhancing fuel economy.

Single Overhead Camshaft: A Single Overhead Camshaft (SOHC), three-cylinder design on the F40 and F30 provides a compact, lightweight, space-saving design.

Precise Throttle Control: All air entering the engine block of is routed through a single throttle valve, to ensure the precise amount of air necessary for optimum power and fuel efficiency. It then enters each cylinder through individual long intake tracks, which are 'pulse tuned' to provide air at the precise volume and timing for maximum density and power.

Dependable Starting: The F40 and F30 feature a vapor-reducing fuel return system. Used in conjuction with multi-point electronic fuel injection, they offer dependable turn-key starting in hot or cold conditions.

Reliability & Durability

Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Midrange four-stroke engines.

Advanced Technology: The F40 and F30 are equipped with an Engine Control Module that interfaces with Yamaha Diagnostic System software. This provides a view of selected past and current running conditions, to help technicians provide a complete and accurate diagnosis of your engine.

Protection from the Elements: A proven one-piece cowling with an intake air drain system easily and efficiently drains water away that enters the cowling. Incoming air is routed through a labyrinth of passages that help trap water before it enters the engine's intake for maximum reliability.

Cleaner Fuel: A large, on-engine water separating fuel filter with a water sensor is used in conjunction with the Yamaha optional boat-mounted 10-Micron Water Separating Fuel Filter. This helps separate water and contaiminants from the fuel before they can reach the outboard's other filters and fuel injectors.

Convenience & Control

Control and Comfort: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.

Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.

Power Trim and Tilt: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.

Model Specific Features

Available for mechanical or tiller-handle control

Only 214 pounds

Available in a 20” shaft

Powerful 17-amp alternator

Optional Variable Trolling RPM Switch (VTS®) via our Multi-Function Tiller Handle, Command Link® tachometer or new helm-mounted remote VTS switch

Specifications

Engine Type: 3 cyl

Displacement: 747cc

Bore x Stroke: 65 x 75mm (2.56 x 2.95 in.)

Prop Shaft Horsepower: 40hp at 5500rpm

Full Throttle RPM Range: 5000 ~ 6000 rpm

Alternator Output at W.O.T.: 17 Amp

Compression Ratio: 9.4:1

Fuel Induction System: EFI

Weight*: 97 kg (214 lbs) - 101kg (223 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 2-Star

Exhaust: Through Propeller

Intake: 6

Ignition: CDI Microcomputer

Spark Plug: DPR6EB-9

Alternator Output: 17 Amp

Starting System: Electric

Lubrication: Wet Sump

Engine Oil Capacity: 1.7L/1.5L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.00:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 20"

Degree of Tilt: 20°

Degree of Trim: -3° through +20°

Dry Weight: 97 kg (214 lbs) - 101kg (223 lbs)

Steering Angle (maximum): 40° from center, either direction

Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

NOTES:

† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
