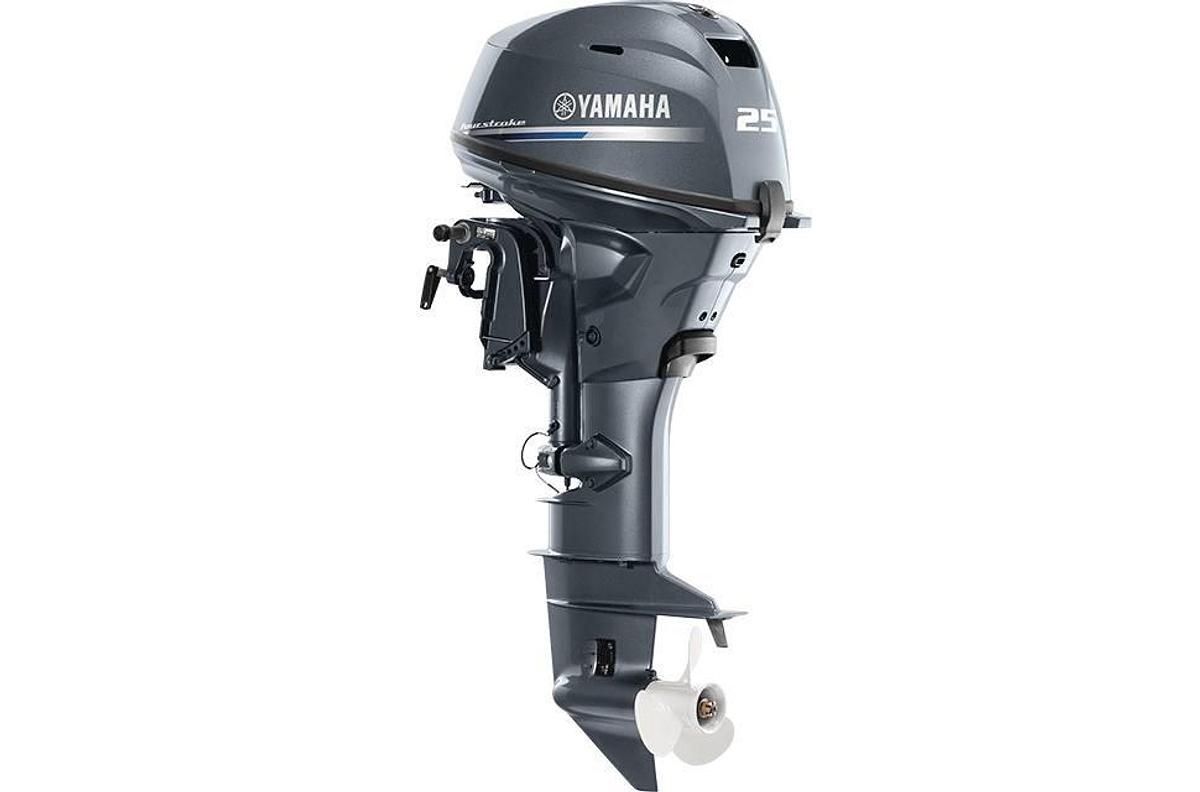

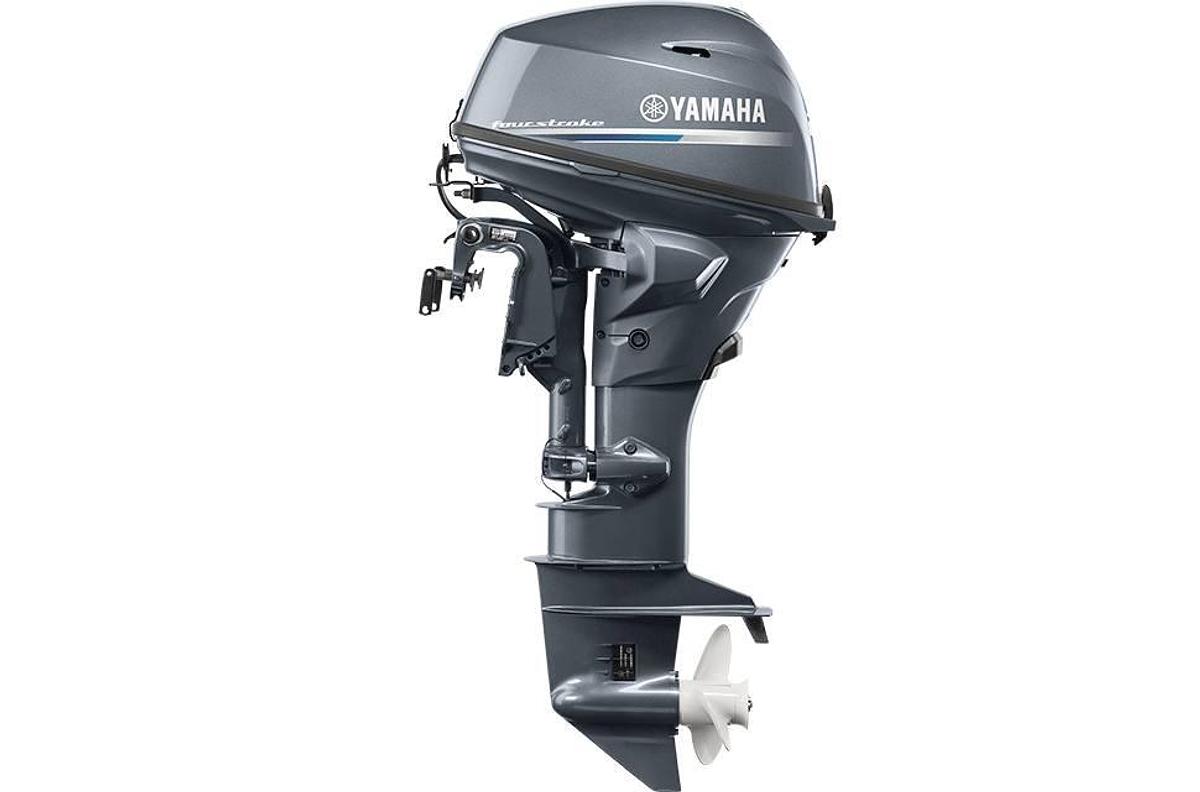

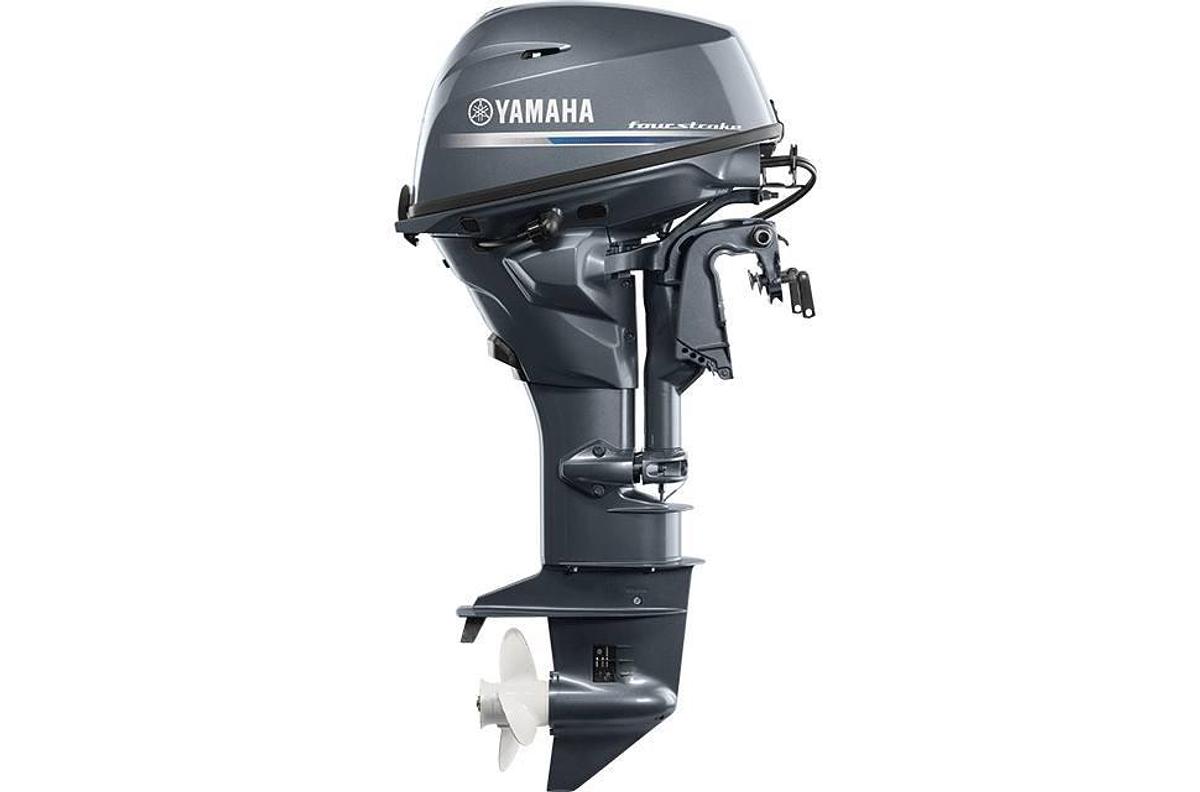

2023 Yamaha F25LWHC

Yamaha 25HP Mfg. 04/23 Long (20") Shaft, Electric Start,Tiller, 4 Stroke. Model F25LWHC.
This is an NEW 4 STROKE Yamaha 25 horsepower electric start outboard. Manufactured 04/23. This Motor is for boats with a 20" transom. Comes with a 3 YEAR WARRANTY.
This engine comes with a multi-purpose aluminum propeller, fuel line with primer bulb, and owners manual.
An authorized dealership can set up a warranty on a new motor. The "pre-delivery" inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha Marine certified technician; it is not and cannot be done prior to shipping. "PDI" can only be done once the motor is installed on the boat.
Engine Type 2 cyl
Displacement 432cc
Bore x Stroke 65 x 65.1mm / (2.56 x 2.56 in)
Prop Shaft Horsepower 25 hp at 5500 rpm
Full Throttle RPM Range 5000 - 6000
Alternator Output at W.O.T. 16 amp
Compression Ratio 9.3:1
Fuel Induction System EFI
Weight † 137 lbs Shipping Weight 170 ibs
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 2-Star
Exhaust Through Propeller
Intake 4
Ignition CDI Microcomputer
Spark Plug DPR6EB-9
Alternator Output 16 Amp
Starting System Electric & Manual
Lubrication Wet Sump
Engine Oil Capacity 1.1L/1.0L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.00:1
Gear Shift Forward, Neutral, Reverse
Shaft Length 15" - 20"
Degree of Tilt 62° - 63°
Degree of Trim -3° through +16°
Dry Weight 137 lbs
Mounting Centers N/A
Steering Angle (maximum) 45° from center, either direction
Warranty Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
Show Less
PLEASE READ
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges.

Our 432-cc 25-hp portable outboard features a streamlined, portable design and class-leading power-to-weight. While its 25 percent lighter than its previous design, it still packs exciting features like battery-less EFI. Pull-start models can now take advantage of this feature, plus the system is designed with an automatic decompression device to require even less effort for manual starting.

Power & Performance

Efficient Power: The F25, F20 and F15 all feature a two-valve-per-cylinder, single-overhead-camshaft design that provides better breathing and more power.

Optimum Performance: An optimally balanced crankshaft and labyrinth exhaust deliver smooth power, while Microcomputer Ignition adjusts timing to maintain maximum engine performance, economy and power under all conditions

Streamlined Intake: An intake silencer and manifold on the F20 and F15 result in more direct airflow, for minimum noise and maximum power.

Responsive Acceleration: An acceleration pump on the F20 and F15 gives the engine the fuel it needs--when it needs it--like during rapid throttle advance. This ensures responsive acceleration.

Reliability & Durability

Optimal Operation: CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.

Wet Sump: A pressurized oil delivery system incorporates a compact and durable oil pump to keep all of the moving parts of their SOHC systems lubricated and running smoothly for maximum reliability.

Engine Warning System: Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.

Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Portable four-stroke outboards.

Convenience & Control

Max Maneuverability: A 45-degree steering angle in each direction means great maneuvering potential.

Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.

Portability and Storage: Incredible light weights, built-in resting pads and carry handles, an easy oil retention system and an optional folding tiller handle, allow for easy carrying and on-side storage without oil leakage or cowling scuffs.

Model Specific Features

Available for remote mechanical or tiller-handle control

Only 126 pounds (15” shaft model)

Available in 15” and 20” shaft lengths and in a High-Thrust design (T25)

Powerful 16-amp alternator

Variable Trolling RPM Switch (VTS®) is standard on factory-equipped tiller handles, and available with our Multi-Function Tiller Handle, a Command Link® tachometer or dash mounted VTS switch

Select models - including 15-inch shafts - now feature a shorter, factory-installed tiller with Power Trim & Tilt and a tilt-up feature for ease in small spaces

Specifications

Engine Type: 2 cyl

Displacement: 432cc

Bore x Stroke: 65 x 65.1mm / (2.56 x 2.56 in)

Prop Shaft Horsepower: 25 hp at 5500 rpm

Full Throttle RPM Range: 5000 - 6000

Alternator Output at W.O.T.: 16 amp

Compression Ratio: 9.3:1

Fuel Induction System: EFI

Weight †: 65kg (143 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 2-Star

Exhaust: Through Propeller

Intake: 4

Ignition: CDI Microcomputer

Spark Plug: DPR6EB-9

Alternator Output: 16 Amp

Starting System: Electric & Manual

Lubrication: Wet Sump

Engine Oil Capacity: 1.1L/1.0L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.00:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 20"

Degree of Tilt: 62° - 63°

Degree of Trim: -3° through +16°

Dry Weight: 20" shaft / 65kg (143 lbs)

Steering Angle (maximum): 45° from center, either direction

Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

NOTES:

† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
