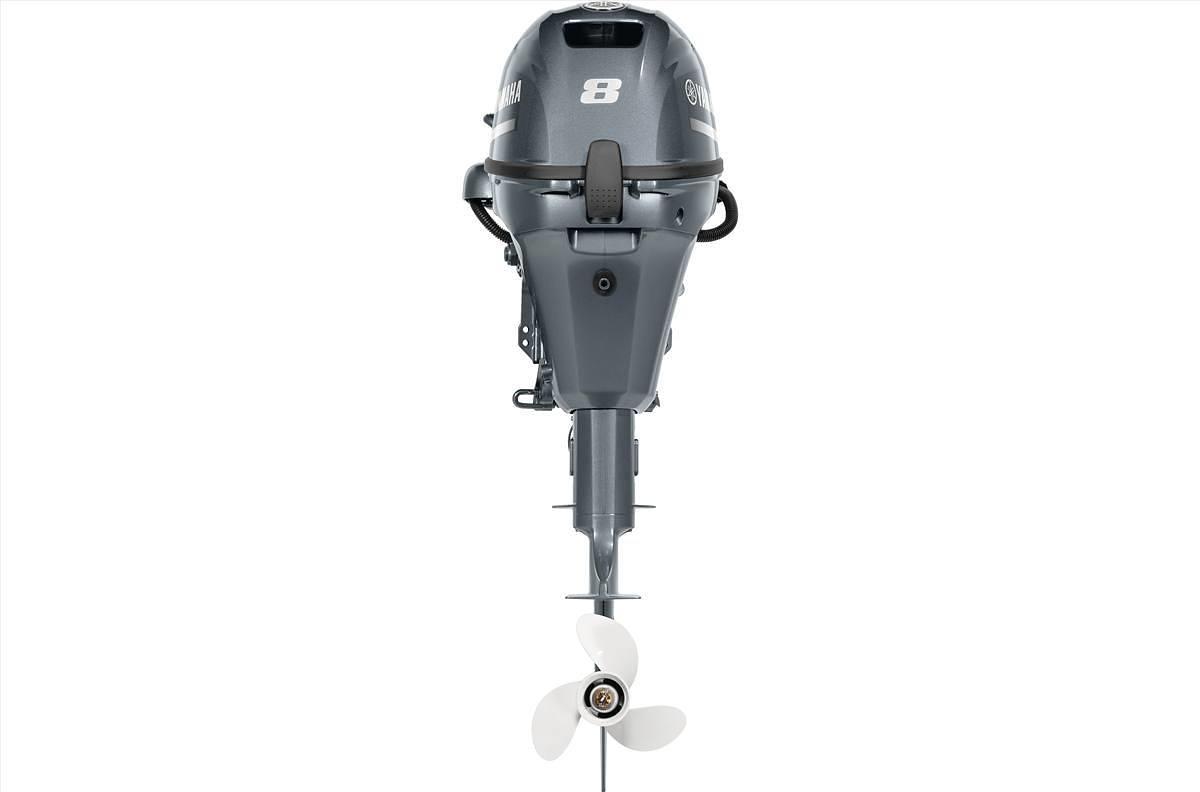

2021 Yamaha F8SMHB

Yamaha 8HP Mfg. 10/22. Short (15") Shaft, Manual Start, Tiller, 4 Stroke. F8SMHB
Yamaha 3 Years Warranty.
This is an NEW 4 STROKE Yamaha 8 horsepower Tiller Operated Outboard. Manufactured 09-21. This Motor is for boats with a 15" transom. Comes with a 3 YEAR FACTORY WARRANTY. This engines includes a general purpose aluminum propeller, fuel line with primer bulb, and an owners manual.
An authorized dealership can set up a warranty on a new motor. The "pre-delivery" inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha Marine certified technician; it is not and cannot be done prior to shipping. "PDI" can only be done once the motor is installed on the boat.
Engine Specifications
Engine Type 2 cyl
Displacement 212cc
Bore x Stroke 56 x 43mm (2.20 x 1.70 in.)
Prop Shaft Horsepower 8hp at 5500 rpm
Full Throttle RPM Range 5000 ~ 6000
Alternator Output at W.O.T. 6 Amp
Compression Ratio 9.4:1
Fuel Induction System Carb
Weight † Dry Weight 89 lbs Shipping Weight 134 ibs
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 3-Star
Exhaust Through Propeller
Intake 4
Ignition CDI Microcomputer
Spark Plug BR6HS-10
Alternator Output 6
Starting System Manual
Lubrication Wet Sump
Engine Oil Capacity 0.8L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.08:1
Gear Shift Forward, Neutral, Reverse
Shaft Length 15" (short)
Degree of Tilt 71°
Degree of Trim -4° through +16°
Dry Weight 89 lbs shipping weight 134lbs
Mounting Centers N/A
Steering Angle (maximum) 43° from center, either direction
Warranty Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
PLEASE READ
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges.

Our 212-cc 8-hp portable outboard features 7.5 percent more displacement than its previous design. This SOHC two-cylinder four stroke delivers a nice balance of power, performance and portability for jon boats and inflatables. Its new, shorter tiller handle makes operation more comfortable, so you can make a whole day of it.

Power & Performance

Compact, lightweight design: A two-cylinder, single-overhead-camshaft platform and streamlined intake manifold provides an efficient, light design.

Responsive Acceleration: An acceleration pump on the F9.9 and F8 gives these engines the fuel they need--when they need it--like during rapid throttle advance. This ensures responsive acceleration.

Streamlined Intake: An intake silencer and manifold on the F9.9 and F8 result in more direct airflow, for minimum noise and maximum power.

Reliability & Durability

Optimal Operation: A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation

Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha four-stroke outboards.

Engine Warning System: Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.

Solid and Dependable: Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.

Wet Sump: A pressurized oil delivery system incorporates a compact and durable oil pump to keep all of the moving parts of their SOHC systems lubricated and running smoothly for maximum reliability.

Convenience & Control

Smart Evolution: The F9.9 and F8 feature a new shorter handle for more comfortable operation. This also ensures that when the handle in hinged back, it tucks in tighter to the cowl for more stable, flexible storage.

Portability and Storage: Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.

Propeller Protection: Yamaha's Shallow Water Drive, standard on all 9.9- and 8-hp tiller handle models, helps keep the propeller and lower unit out of harm's way in shallow water.

Model Specific Features

Only 87 pounds

Available for tiller-handle control

Available in 15” and 20” shaft lengths

Solid 6-amp alternator

Specifications

Engine Type: 2 cyl

Displacement: 212cc

Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)

Prop Shaft Horsepower: 8hp at 5500 rpm

Full Throttle RPM Range: 5000 ~ 6000

Alternator Output at W.O.T.: 6 Amp

Compression Ratio: 9.4:1

Fuel Induction System: Carb

Weight*: 39 kg (87 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 3-Star

Exhaust: Through Propeller

Intake: 4

Ignition: CDI Microcomputer

Spark Plug: BR6HS-10

Alternator Output: 6

Starting System: Manual

Lubrication: Wet Sump

Engine Oil Capacity: 0.8L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.08:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 15"

Degree of Tilt: 71°

Degree of Trim: -4° through +16°

Dry Weight: 39 kg (87 lbs)

Mounting Centers: N/A

Steering Angle (maximum): 43° from center, either direction

Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial

NOTES:

Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
