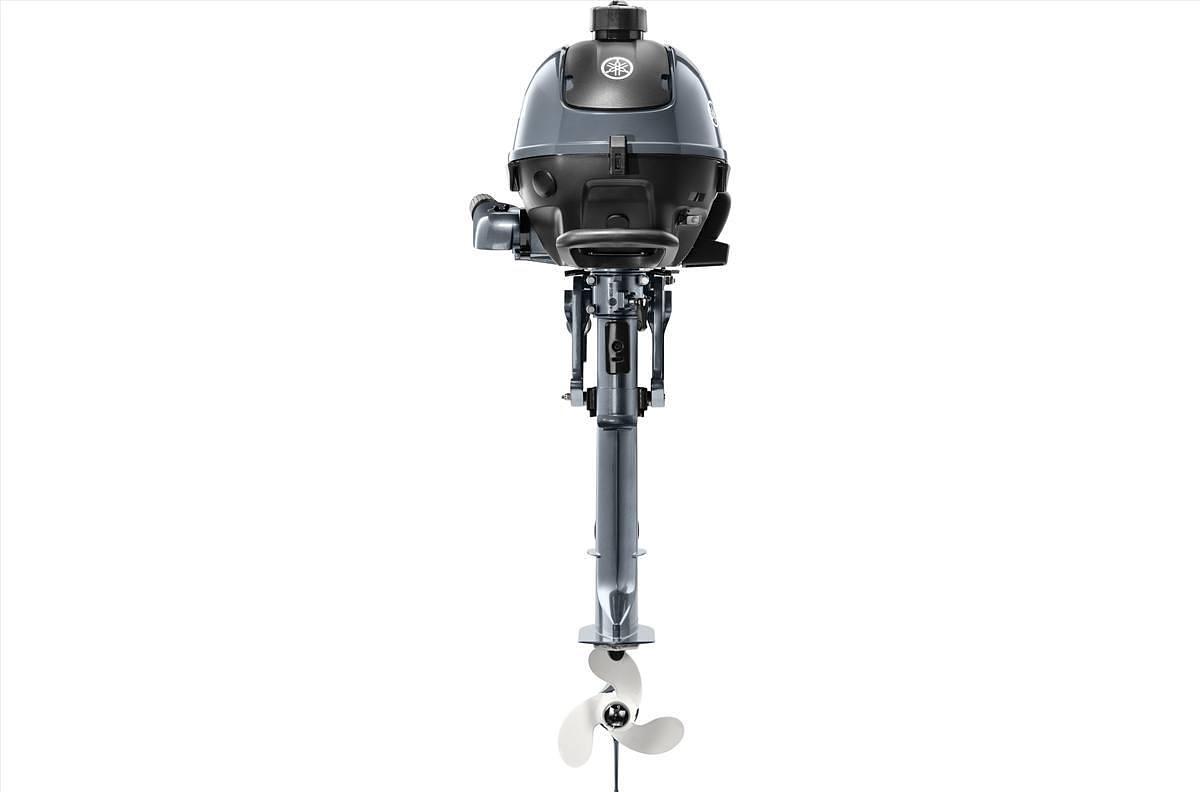

2022 Yamaha F2.5LMHB 4S

NEW 4 STROKE Yamaha 2.5 horsepower, tiller controlled, manual start, long (20") transom outboard motor. Manufactured 03/2022. This motor comes with a 3 YEAR WARRANTY
Stock # 6EGL-1032267 MSRP: $1230.00
Included with this OUTBOARD is an owner's manual.
An authorized dealership can set up a warranty on new motor. The "pre=delivery" inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha certified technician; it is not and cannot be done prior to shipping. PDI can only be done once the motor is installed on the boat.
ENGINE SPECIFICATIONS
Engine Type 1 cyl
Displacement 72cc
Bore x Stroke 54 x 31.5 mm (2.13 x 1.24 in)
Prop Shaft Horsepower 2.5hp at 5500 rpm
Full Throttle RPM Range 5250 ~ 5750
Alternator Output at W.O.T. N/A
Compression Ratio 8.8:1
Fuel Induction System Carb
Weight † 17 kg (37 lbs) - 20 kg (40lbs)
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration N/A
C.A.R.B. Rating 2-Star
Exhaust Above Propeller
Intake 2
Ignition TCI
Spark Plug CR6HSB
Alternator Output N/A
Starting System Manual
Lubrication Splash
Engine Oil Capacity 0.35L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.01:1
Gear Shift Forward, Neutral
Shaft Length 15" - 20"
Degree of Tilt 79°
Degree of Trim -4° through +16°
Dry Weight 15" shaft / 17 kg (37 lbs), 20" shaft / 20 kg (40 lbs)
Shipping Weight 76 ibs
Mounting Centers N/A
Steering Angle (maximum) 360° from center, either direction
Warranty Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
PLEASE READ
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges.

Our 72-cc 2.5-hp portable outboard is the smallest motor on our roster, yet, it has some of the biggest news. Completely redesigned, it’s even more portable, easier to store and cleaner burning. It recently achieved a Two-Star rating from the California Air Resources Board (C.A.R.B) for Ultra-Low Emissions and now meets emissions requirements in all 50 states.

Power & Performance

Lightweight, Portable Power: They may weigh as little as 37 pounds, but these Overhead-Valve portable outboards are packed with features that create smooth, quiet power. This includes a CDI or TCI ignition system, an optimally balanced crankshaft, a long span mounting system and a labyrinth exhaust.

Ultra-Low Emissions: The Portable F6, F4 and F2.5 are California Air Resources Board (C.A.R.B.) Two-Star Rated for Ultra-Low Emissions and meet federal EPA requirements.

Record Setting Fuel Efficiency: Small motors use less fuel, but according to the Guinness Book of World Records, the Yamaha F4 actually set a world record for fuel efficiency, traveling 67.27 continuous statute miles on one gallon of gas.

Reliability & Durability

Easy Operation: The F6, F4 and F2.5 feature built-in, see through fuel tanks. The F6 and F4 also feature switchable access to an optional, 3.1-gallon external fuel tank for extended range.

Wet Sump: A pressurized oil delivery system that incorporates a compact and durable oil pump to keep all of the moving parts of their Overhead Valve systems lubricated and running smoothly for maximum reliability.

Corrosion Protection: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Portable outboards.

Maximum Efficiency: The F6, F4 and F2.5 have a carburetor with a factory-selected setting for maximum efficiency, which helps them achieve a C.A.R.B. Three-Star Rating for Ultra-Low Emissions. Additionally, automatic decompression, built-in auxiliary priming and start-in-gear prevention help make for easier starts.

Convenience & Control

Easy Storage: Yamaha’s F2.5, F4, and F6 feature our Easy Storage Oil Retention System. This pressurized oiling system prevents leaks, enabling on-side storage.

Comfortable Control: Incredibly nimble, the F6 and F4 feature 180-degree steering and the F2.5 features 360-degree steering with a dynamically balanced and dampened twist-grip throttle for comfort and convenient maneuverabilty.

Portability and Storage: Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.

Model Specific Features

Available for tiller-handle control with forward-neutral shifting, 360-degree steering and an ergonomic twist-grip throttle

Only 37 pounds (15” shaft model)

Available in 15” and 20” shaft lengths

Specifications

Engine Type: 1 cyl

Displacement: 72cc

Bore x Stroke: 54 x 31.5 mm (2.13 x 1.24 in)

Prop Shaft Horsepower: 2.5hp at 5500 rpm

Full Throttle RPM Range: 5250 ~ 5750

Compression Ratio: 8.8:1

Fuel Induction System: Carb

Weigh †t: 20 kg (40lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

C.A.R.B. Rating: 2-Star

Exhaust: Above Propeller

Intake: 2

Ignition: TCI

Spark Plug: CR6HSB

Starting System: Manual

Lubrication: Splash

Engine Oil Capacity: 0.35L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.01:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 20"

Degree of Tilt: 79°

Degree of Trim: -4° through +16°

Dry Weight: 20 kg (40 lbs)

Steering Angle (maximum): 360° from center, either direction

Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
