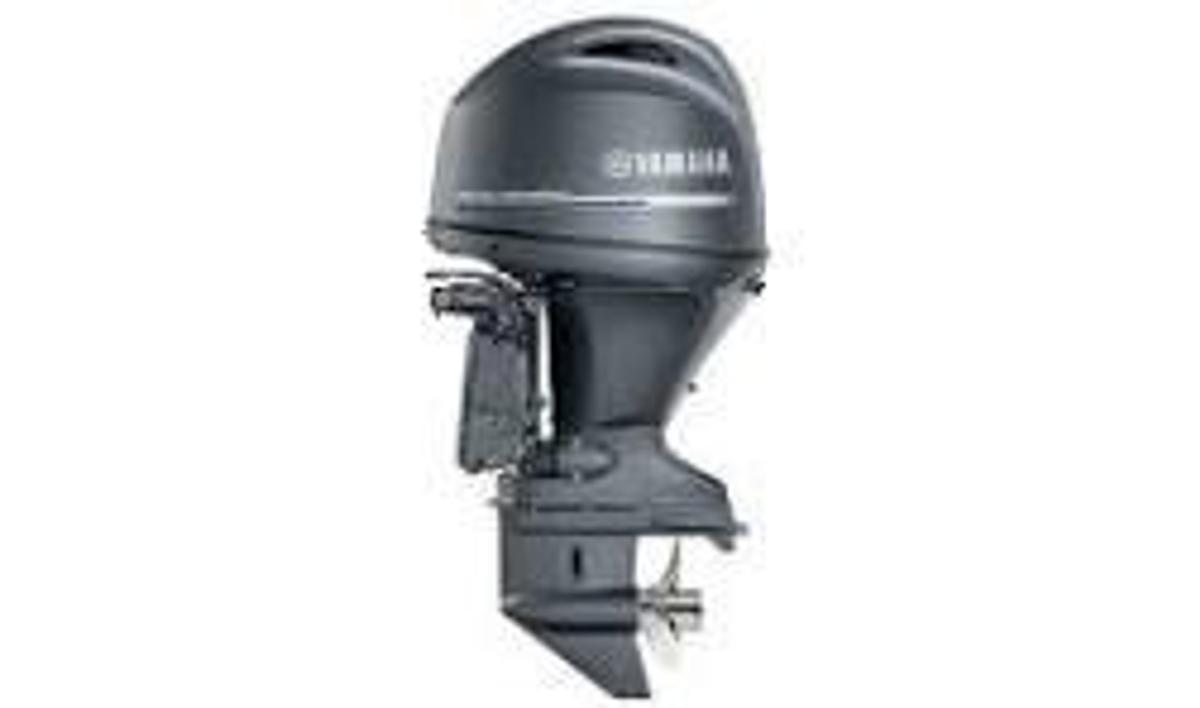

2024 Yamaha F90LB

Yamaha 90HP Outboard Motor MFG. 01/24
REMOTE CONTROL, LONG(20")SHAFT, 4 STROKE.
Yamaha 3 Years Warranty.
MSRP: $11,600.00
This outboard is a new Yamaha 90 HP Mfg. 01/24 Model F90LB Long Shaft (20")
Engine Type
Inline 4
Displacement 1.8L
Bore x Stroke 81 x 88.9mm (3.19 x 3.5 in)
Prop Shaft Horsepower 90hp @ 5500 rpm
Full Throttle RPM Range 5000 ~ 6000
Alternator Output at W.O.T. 35 Amp
Compression Ratio 10.0:1
Fuel Induction System EFI
Weight ? 160kg (353 lbs) - 164kg (362 lbs)
Recommended Fuel Octane 87
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 3-Star
Exhaust Through Propeller
Intake 16
Ignition TCI Microcomputer
Spark Plug LFR6A-11
Alternator Output 35 Amp
Starting System Electric
Lubrication Wet Sump
Engine Oil Capacity 3.2/3.0L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.15:1
Gear Shift Forward, Neutral, Reverse
Shaft Length 20" - 25"
Degree of Tilt 70
Degree of Trim -4° through +66°
Dry Weight 20" shaft / 160kg (353 lbs), 25" shaft / 164kg (363 lbs)
Mounting Centers 26"
Steering Angle (maximum) 35° from center, either direction
Warranty Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
PLEASE READ
An authorized dealership can set up a warranty on new motor. The (pre-delivery) inspection is not covered in the price of the motor or under warranty. Inspections usually take one to two hours depending. This service can be provided to you through our service department if you wish. It can be done by any Yamaha Marine certified technician; it is not and cannot be done prior to shipping. "PDI" can only be done once the motor is installed on the boat.
Flat rate shipping applies to US addresses only. Outboard Motors regardless of size, make, or model cannot be ship outside of the Continental United States without special consideration and / or price quotes from a freight forwarding agency. This means if it involves transport by plane or boat an additional charge will be added to the freight. If you are receiving your purchase outside the U.S.A. you should wait to pay for your purchase until you have received an invoice from the seller where the freight has been properly adjusted.
The U.S. has five permanently inhabited territories. The above restrictions apply to the following: Puerto Rico and the U.S. Virgin Islands in the Caribbean Sea, Guam and the Northern Mariana Islands in the North Pacific Ocean, and American Samoa in the South Pacific Ocean.
These same restrictions also apply to Alaska and Hawaii.
The least expensive way to ship freight is from business to business where both parties are accustomed to unloading from ground level by Fork Truck or a proper height Truck Ramp with an approved drive across Deck Plate. Trucking companies will furnish a lift gate service for an extra fee (most times $75.00 to $125.00) and also will deliver to a residence for an extra charge. (Usually around $200.00) These services can get expensive and must be requested by the shipping party. Limited Access Areas, such as: marinas, farms, campgrounds, parks, and other rural locations many times will be subject to extra charges. Even if you have a Legal Business License the commercial truckers may not recognize you as a Business. Most Trucking Companies will allow for consumer pick up at the destination terminal if it has been prearranged by the shipper. This is the best way not to be surprised by unforeseeable extra charges..

The Yamaha 115 hp and the all-new 90 hp and 75 hp Midrange four strokes are reliable inshore performers. Fast and powerful, they sport 1.8-liter displacement and DOHC or SOHC designs with four valves per cylinder. This gives them exceptional volumetric efficiency and lighter weights. With 25-inch shaft options for the F115 and F90, this horsepower range offers prime power for mid-size craft, including anglers trolling large, rough water in 25-inch-transom multi-species boats. The completely surprising Yamaha Midrange 115, 90 and 75 hp four strokes. A powerful part of our lineup—and your boating experience.

Specifications

Engine Type: Inline 4

Displacement: 1.8L

Bore x Stroke: 81 x 88.9mm (3.19 x 3.5 in)

Prop Shaft Horsepower: 90hp @ 5500 rpm

Full Throttle RPM Range: 5000 ~ 6000

Alternator Output at W.O.T.: 35 Amp

Compression Ratio: 10.0:1

Fuel Induction System: EFI

Weight *: 160kg (353 lbs) - 164kg (362 lbs)

Recommended Fuel: Octane 87

Recommended Engine Oil: Yamalube® 4M (See owner's manual)

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 3-Star

Exhaust: Through Propeller

Intake: 16

Ignition: TCI Microcomputer

Spark Plug: LFR6A-11

Starting System: Electric

Lubrication: Wet Sump

Engine Oil Capacity: 3.2/3.0L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.15:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 20" - 25"

Degree of Tilt: 70

Degree of Trim: -4° through +66°

Mounting Centers: 26"

Steering:

Steering Angle (maximum): 35° from center, either direction

Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial

NOTES:

* Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
